- Based on the Emulex ""Saturn"" 8Gb Fiber Channel I/O Controller (IOC) chip
- Multifunction PCIe 2.0 device with two independent FC ports
- Auto-negotiation between 2-Gbps, 4-Gbps, or 8-Gbps FC link attachments
- Complies with the PCIe base and CEM 2.0 specifications
- Enablement of high-speed and dual-port connection to a Fiber Channel SAN
- Comprehensive virtualization capabilities with support for N Port ID Virtualization (NPIV) and Virtual Fabric
- Simplified installation and configuration using common HBA drivers
- Common driver model that eases management and enables upgrades independent of HBA firmware
- Frame buffer first in, first out (FIFO): Integrated transmit and receive frame buffer for each data channel
- Support for Fabric Manager
- Support for UEFI

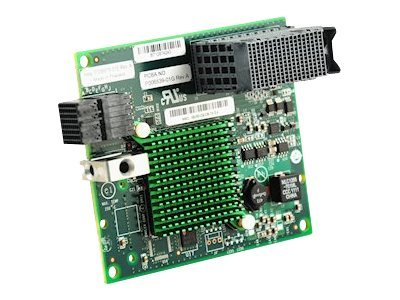

The Flex System FC3052 2-port 8Gb Fiber Channel Adapter enables high-speed access for Flex System compute nodes to an external storage area network (SAN). This adapter is based on the proven Emulex Fiber Channel stack, and works with any of the 8 Gb or 16 Gb Flex System Fiber Channel switch and pass-thru modules.
