| Allmänt |
| Typ av enhet | Enhet för laddningsbalansering |
| Bredd | 9.279 cm |
| Djup | 26.77 cm |
| Höjd | 2.794 cm |
| Vikt | 1.27 kg |
| Nätverksfunktioner |
| Formfaktor | Insticksmodul |
| Anslutningsteknik | Kabelansluten |
| Dataöverföringshastighet | 10 Gbps |
| Datalänkprotokoll | 10 Gigabit Ethernet |
| Nätverks/transportprotokoll | iSCSI |
| Nätverksprotokoll | IGMPv2, IGMP, IGMPv3 |
| Protokoll för administration på distans | SNMP 1, SNMP 2, CLI |
| Kommunikationsläge | Full duplex |
| Kapacitet | MAC-adresser: 128000
IGMP-grupper: 1000 |
| Funktioner | Stöd för LDAP, VLAN-stöd, IGMP snooping, övervakningsbar, staplingsbar, fast programvara kan uppdateras, Jumbo Frames-support, LACP (Link Aggregation Control Protocol) |
| Krypteringsalgoritm | SSL |
| Verifieringsmetod | RADIUS, TACACS+ |
| Standarder som följs | IEEE 802.2, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3aq |
| Expansion/Anslutning |
| Gränssnitt | 16 x 10Gb Ethernet
10 x 10 Gb Ethernet (upplänk) - SFP+
4 x 10Gb Ethernet - SFP+
1 x management (USB)
1 x administration |
| Diverse |

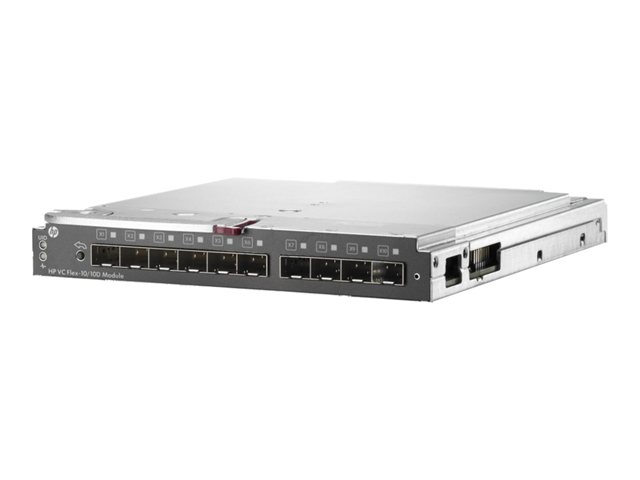

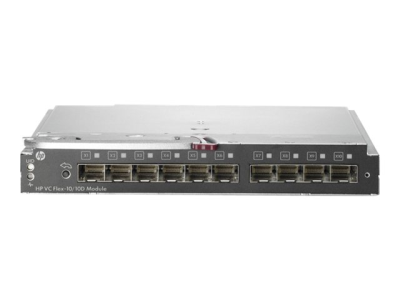

| Inkluderade tillbehör | HP Virtual Connect Flex-10/10D Module |
| Standarder som följs | FCC klass A-certifierad, UL, TUV, CISPR 22 klass A, cUL, EN55022 klass A, CB, FCC Part 15, UL 60950-1, EN 60950-1, WEEE, MIC Class A, CSA C22.2 No. 60950-1, AS/NZS 3548 klass A, VCCI Class A |
| Programvara / Systemkrav |
| Medföljande programvara | HP Virtual Connect Manager, HP Virtual Connect Enterprise Manager (1 kapslingslicens) |
| Tillverkarens garanti |
| Service och support | Begränsad garanti - material och tillverkning - 1 år - på platsen |
| Miljöparametrar |
| Min temperatur vid drift | 10 °C |
| Max temperatur vid drift | 35 °C |
| Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
| Kompatibilitetsinformation |
| Designat för | HPE BLc3000 Enclosure w/2 Power Supplies and 4 Fans, w/2 Power Supplies and 4 Fans w/8 Insight Control Environment 30 Day Evaluation Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment for BladeSystem Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment Trial Licenses, w/4 Power Supplies and 6 Fans with Insight Control Environment Trial License, w/6 Power Supplies and 6 Fans with 8 Insight Control Licenses, with 8 Insight Control Environment 30 Day Trial Licenses, with 8 Insight Control Environment for BladeSystem Licenses
HPE BLc7000 Single-Phase Enclosure w/2 Power Supplies and 4 Fans w/16 Insight Control Env. Linux Edition Licenses, w/2 Power Supplies and 4 Fans w/16 Insight Control Environment Licenses, w/2 Power Supplies and 4 Fans w/16 Insight Control Tower Licenses, w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses
HPE BLc7000 Three-Phase Enclosure w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses, w/6 Power Supplies and 6 Fans w/16 Insight Control Environment Licenses, w/6 Power Supplies and 6 Fans w/8 Insight Control Environment Trial Licenses |
|
